DX-LR20 Development Kit Semtech SX1262+STM32 LORA SPI Interface Module 410-475MHz/433MHz with 2PCS Antenna 22 dBm 8KM for Arduino DIY CE FCC (DX-LR20-900Mmz-T1)
Product details
| Management number | 247531529 | Release Date | 2026/08/16 | List Price | US$7.60 | Model Number | 247531529 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

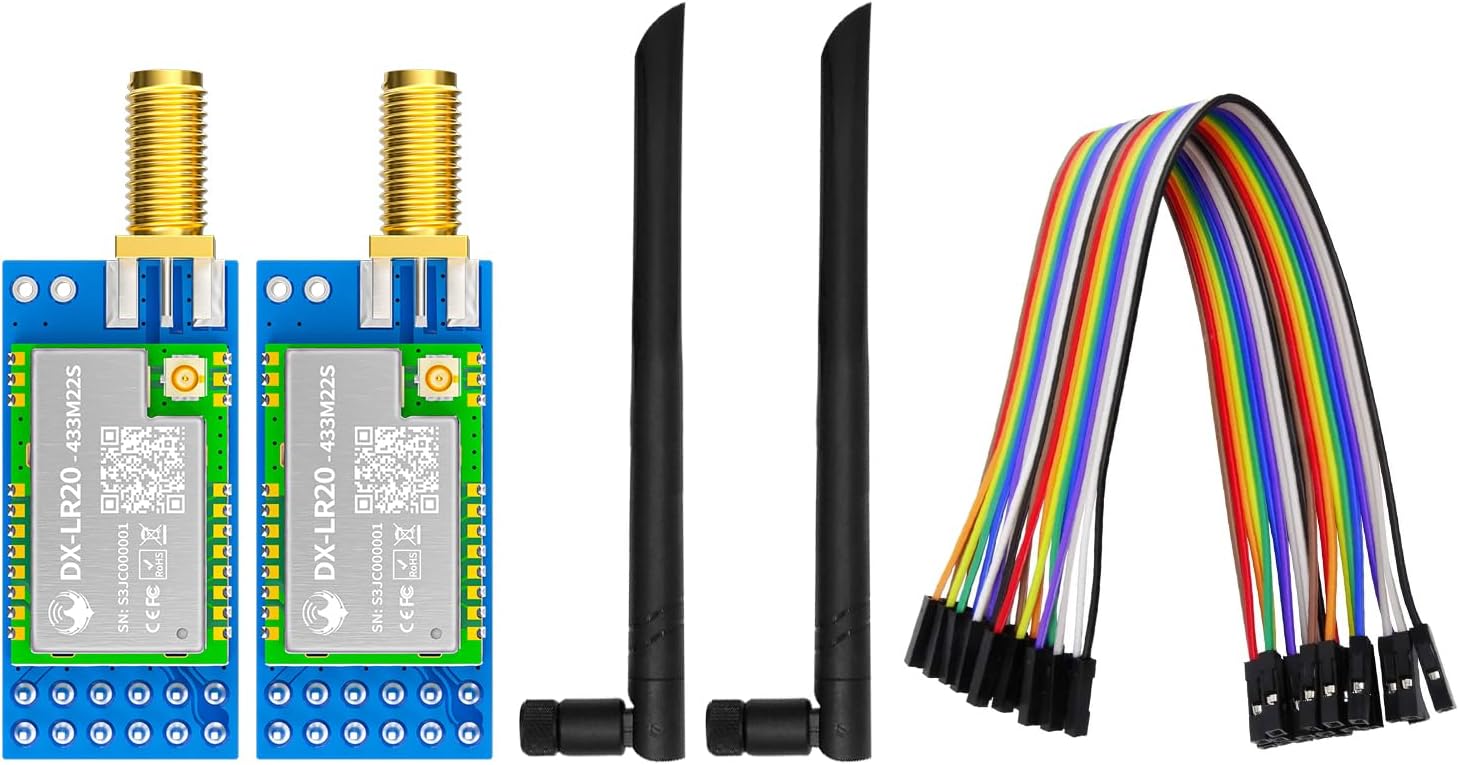

- 【LR20-T1 Development Kit Features】The package includes STM32F103C8T6 development boards * 2,LR20 modules * 2，antennas * 2,data cables * 2. If you do not have an MCU, we recommend purchasing this T1 kit. The kit is complete and no additional accessories are required. In addition, the DX-LR20 has multiple certifications and is equipped with an RF shielding cover, providing strong anti-interference capability, ESD protection, and excellent EMC performance.
- 【SEMTECH LLCC68 Chip】The DX-LR20 series adopts the SEMTECH LLCC68 chip solution and integrates a newly developed generation of LoRa spread spectrum technology. Compared with SX1278/SX1276 solutions, it offers stronger performance, longer transmission distance, faster speed, and lower power consumption. It supports wake-on-radio, carrier sensing, communication encryption keys, and adjustable packet length settings.
- 【8KM Transmission Distance】The DX-LR20 transmission distance can reach up to 8 km (in open environment). It supports 433–532 MHz frequency band communication with 22 dBm output power. Programmable with SPI interface; firmware development must be completed by the user. 32 MHz crystal frequency, TTL level output, compatible with 3.3V–5V IO port voltage.
- 【Comprehensive Information】We provide complete technical support, including technical documentation, sample programs, module package drawings, reference design schematics, and development/testing tools. To help you quickly verify module functions and accelerate product development, we strongly recommend purchasing the development kit with your first order. You can access the user guide and full product information through the product guide and documentation links below.
- 【Applications】Home security alarm and remote keyless entry; smart home and industrial sensors; wireless alarm security systems; building automation solutions; industrial wireless remote control; Advanced Metering Infrastructure (AMI); automotive applications.
- 【Technical Support】We are a manufacturer, not a trading company. Please trust our capabilities and expertise. We will help you solve any problems you encounter. OEM and ODM services are available. If you have any questions, please contact us and we will respond promptly to assist you.
| ASIN | B0G527ZB64 |
|---|---|
| Brand | PDDAXLQUE |
| CPU Model | Cortex |
| Model Name | DX-LR20 |
| Unit Count | 2 Count |
| Manufacturer | DX-SMART |
| Model Number | DX-LR20-900Mmz-T1 |
| BuiltIn Media | DX-LR20 |
| Number of Items | 2 |
| Processor Brand | STMicroelectronics |
| Processor Count | 2 |
| Processor Speed | 32 MHz |
| Total Usb Ports | 1 |
| Compatible Devices | STM32F103C8T6 development board |
| Warranty Description | NO |
| RAM Memory Technology | LPDDR |
| Connectivity Technology | SPI, TTL, LoRa |
